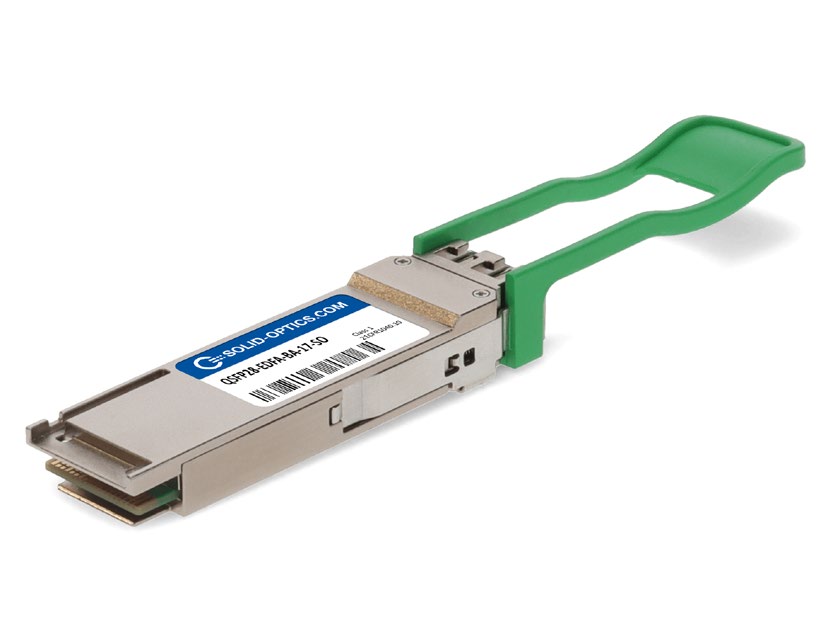

QSFP28-EDFA-PA-17-SO

QSFP28 EDFA module is a hot pluggable amplifier with standard QSFP28 packaged. It is designed for C band signal amplification with built-in control circuits. The products feature ultra compact size, low power consumption and excellent noise figure. With standard QSFP28 interface and protocol ,the micro-processor controlled and managed QSFP28 module can ideally be used in high densely telecom systems, such as compact DCI networks.

QSFP28 Pluggable EDFA Preamplifier for DWDM, Duplex LC, Input power -30dBm to -10dBm, Nominal gain +17dB

Download Datasheet

Can't find your product? Contact us.

Additional information

Form Factor Group	QSFP28
Technique	Pluggable EDFA
Wavelength	1529nm to 1554nm (48CH), 1545.32nm to 1557.36nm (16CH)
Connector	LC Duplex, UPC receptacle
Cable Type	SMF
Power Budget	17dBm
Power Dissipation	2.5W
Input Power	-30dBm to -10dBm
Output Power	7dBm
Gain Flatness	3.5 dB (48CH), 1 dB (16CH)
