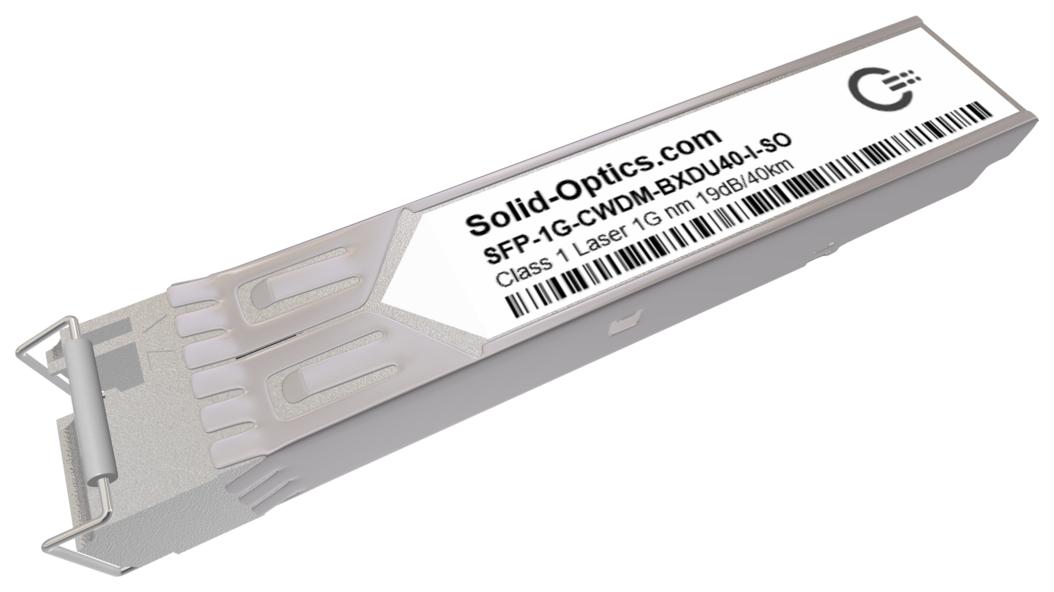

SFP-1G-CWDM-BXDU40-I-SO

SKU SFP-1G-CWDM-BXDU40-I-SO Categories 1G BIDI, 1G CWDM, 1G SFP

SFP 1G, CWDM BIDI D/U, 40km/19dB over SMF, LC simplex, Industrial Temperature

Brand Compatibility

Wavelength

Product Specification

Additional information

Form Factor Group	SFP
Speed	1G
Technique	CWDM Bidi
Dom Support	Yes
Connector	LC Simplex
Cable Type	SMF
Power Budget	19 dB, 20 dB
Laser	DFB
Tx Power	-5dBm to 0dBm
Receiver	PIN, PIN PD
Rx Sensitivity	-24dBm
Rx Overload	0dBm
Wavelength	D: 1275/1267 nm, D: 1295/1287 nm, D: 1315/1307 nm, D: 1335/1327 nm, D: 1355/1347 nm, D: 1375/1367 nm, D: 1395/1387 nm, D: 1415/1407 nm, D: 1435/1427 nm, D: 1455/1447 nm, D: 1475/1467 nm, D: 1495/1487 nm, D: 1515/1507 nm, D: 1535/1527 nm, D: 1555/1547 nm, D: 1575/1567 nm, D: 1595/1587 nm, D: 1615/1607 nm, U: 1267/1275 nm, U: 1287/1295 nm, U: 1307/1315 nm, U: 1327/1335 nm, U: 1347/1355 nm, U: 1367/1375 nm, U: 1387/1395 nm, U: 1407/1415 nm, U: 1427/1435 nm, U: 1447/1455 nm, U: 1467/1475 nm, U: 1487/1495 nm, U: 1507/1515 nm, U: 1527/1535 nm, U: 1547/1555 nm, U: 1567/1575 nm, U: 1587/1595 nm, U: 1607/1615 nm
Distance	40km
Temperature	-40°C to 85°C

Download Datasheet
