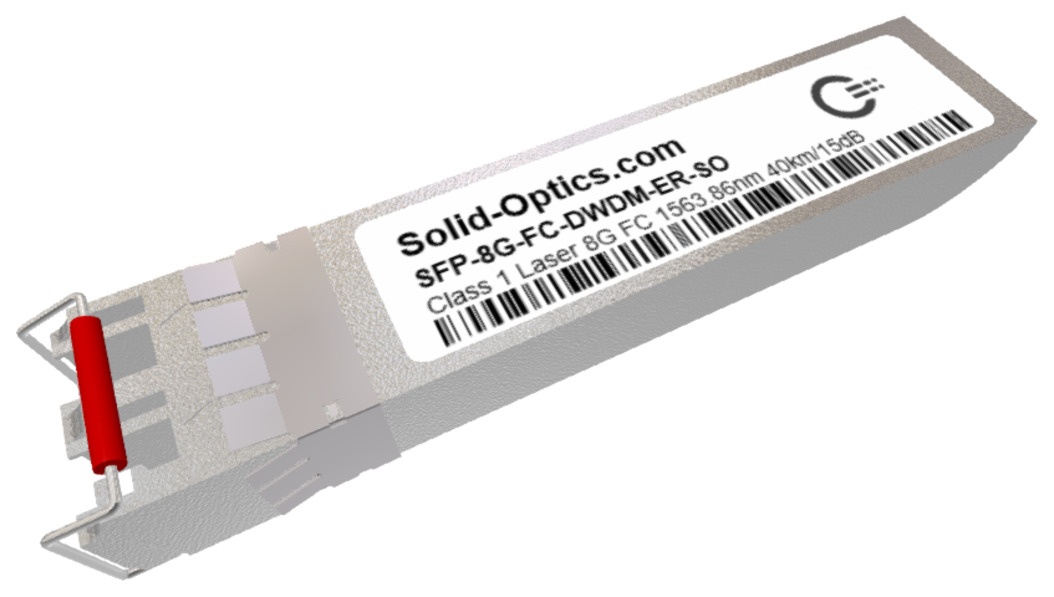

SFP-8G-FC-DWDM-ER-SO

SKU SFP-8G-FC-DWDM-ER-SO Categories 8G DWDM, FIBRE CHANNEL

8G, DWDM Fixed, C-Band 100Ghz CH17 – CH61, 40km over SMF, LC duplex

Brand Compatibility

Wavelength

Temperature

Product Specification

Additional information

Form Factor Group	SFP
Speed	10G
Technique	DWDM Fixed 100Ghz
Dom Support	Yes
Connector	LC Duplex
Cable Type	SMF
Power Budget	15 dB
Laser	EML
Tx Power	1dBm to 4dBm
Receiver	PIN
Rx Sensitivity	-15.8dBm
Rx Overload	-1dBm
Wavelength	100 Ghz CH17/1563.86 nm, 100 Ghz CH18/1563.05 nm, 100 Ghz CH19/1562.23 nm, 100 Ghz CH20/1561.42 nm, 100 Ghz CH21/1560.61 nm, 100 Ghz CH22/1559.79 nm, 100 Ghz CH23/1558.98 nm, 100 Ghz CH24/1558.17 nm, 100 Ghz CH25/1557.36 nm, 100 Ghz CH26/1556.55 nm, 100 Ghz CH27/1555.75 nm, 100 Ghz CH28/1554.94 nm, 100 Ghz CH29/1554.13 nm, 100 Ghz CH30/1553.33 nm, 100 Ghz CH31/1552.52 nm, 100 Ghz CH32/1551.72 nm, 100 Ghz CH33/1550.92 nm, 100 Ghz CH34/1550.12 nm, 100 Ghz CH35/1549.32 nm, 100 Ghz CH36/1548.51 nm, 100 Ghz CH37/1547.72 nm, 100 Ghz CH38/1546.92 nm, 100 Ghz CH39/1546.12 nm, 100 Ghz CH40/1545.32 nm, 100 Ghz CH41/1544.53 nm, 100 Ghz CH42/1543.73 nm, 100 Ghz CH43/1542.94 nm, 100 Ghz CH44/1542.14 nm, 100 Ghz CH45/1541.35 nm, 100 Ghz CH46/1540.56 nm, 100 Ghz CH47/1539.77 nm, 100 Ghz CH48/1538.98 nm, 100 Ghz CH49/1538.19 nm, 100 Ghz CH50/1537.40 nm, 100 Ghz CH51/1536.61 nm, 100 Ghz CH52/1535.82 nm, 100 Ghz CH53/1535.04 nm, 100 Ghz CH54/1534.25 nm, 100 Ghz CH55/1533.47 nm, 100 Ghz CH56/1532.68 nm, 100 Ghz CH57/1531.90 nm, 100 Ghz CH58/1531.12 nm, 100 Ghz CH59/1530.33 nm, 100 Ghz CH60/1529.55 nm, 100 Ghz CH61/1528.77 nm
Distance	40km
Temperature	0°C to 70°C

Download Datasheet
