SKU EDFAMUX Category
SKU EDFAMUX Category

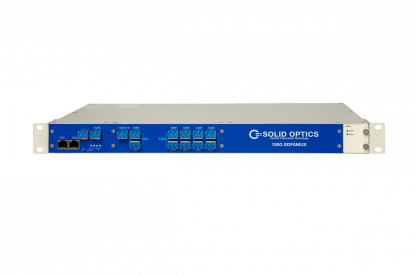

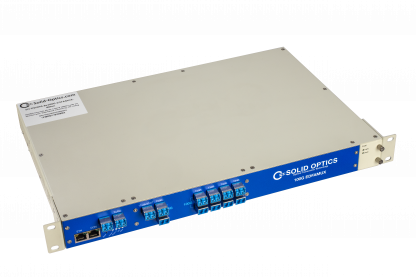

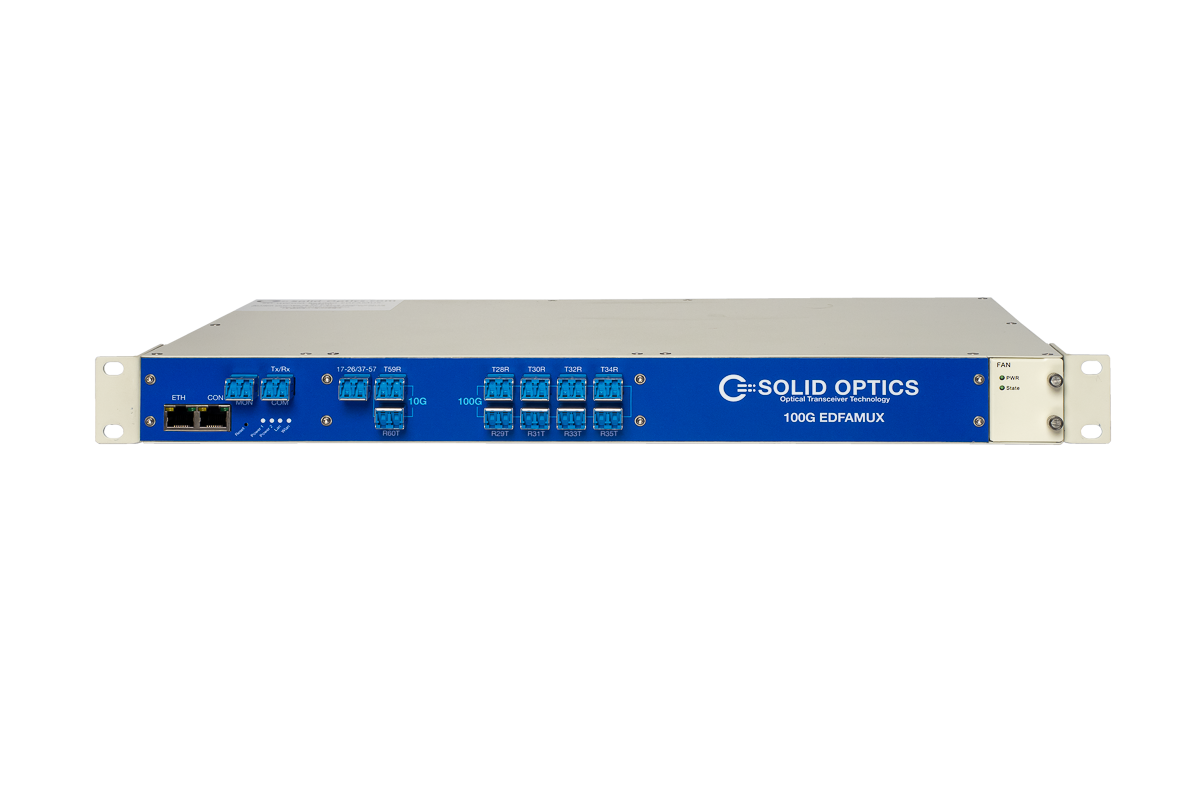

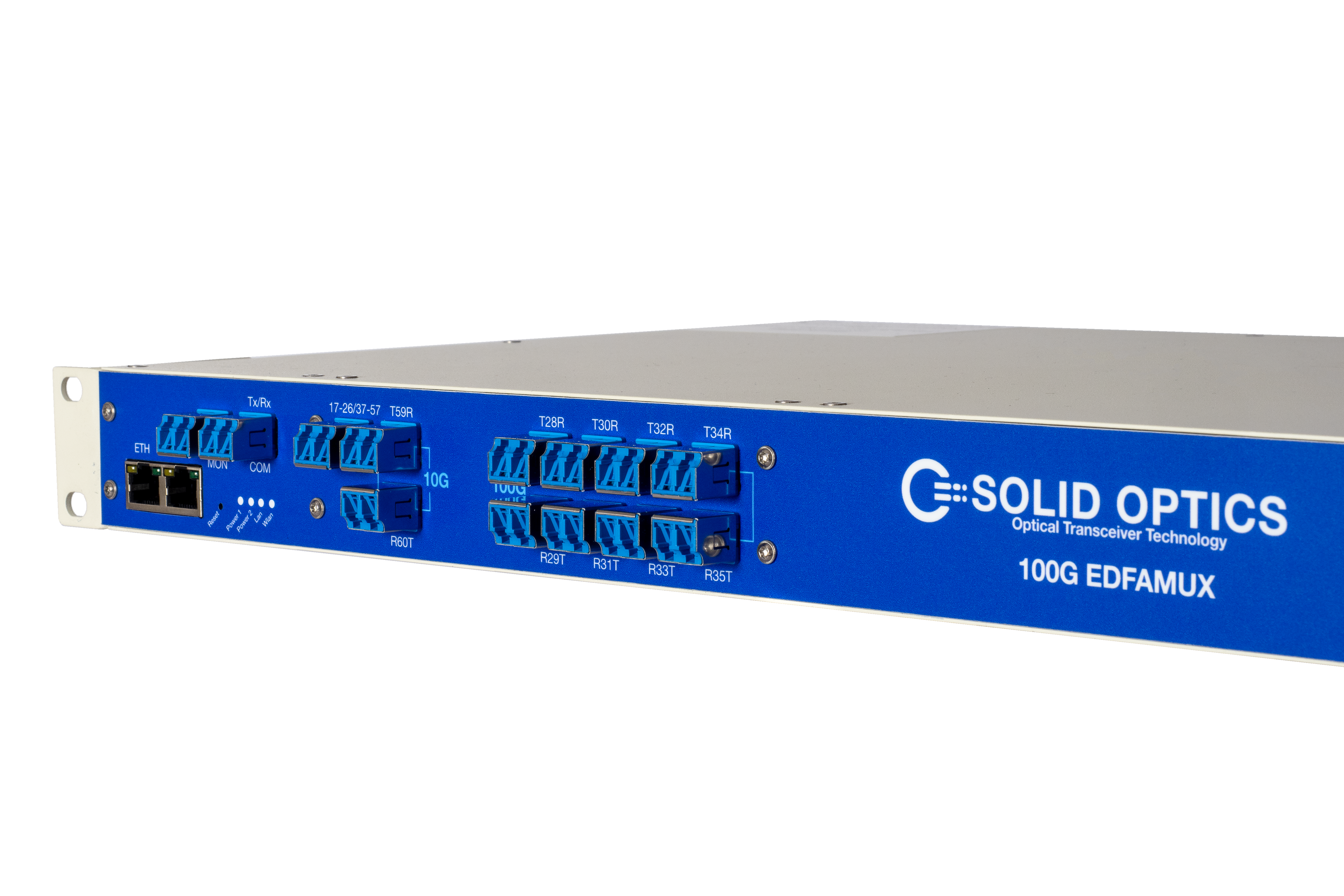

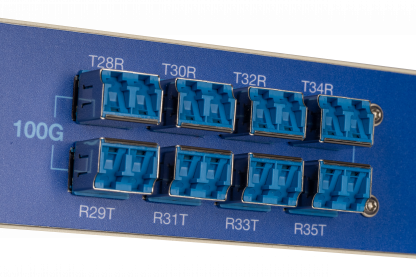

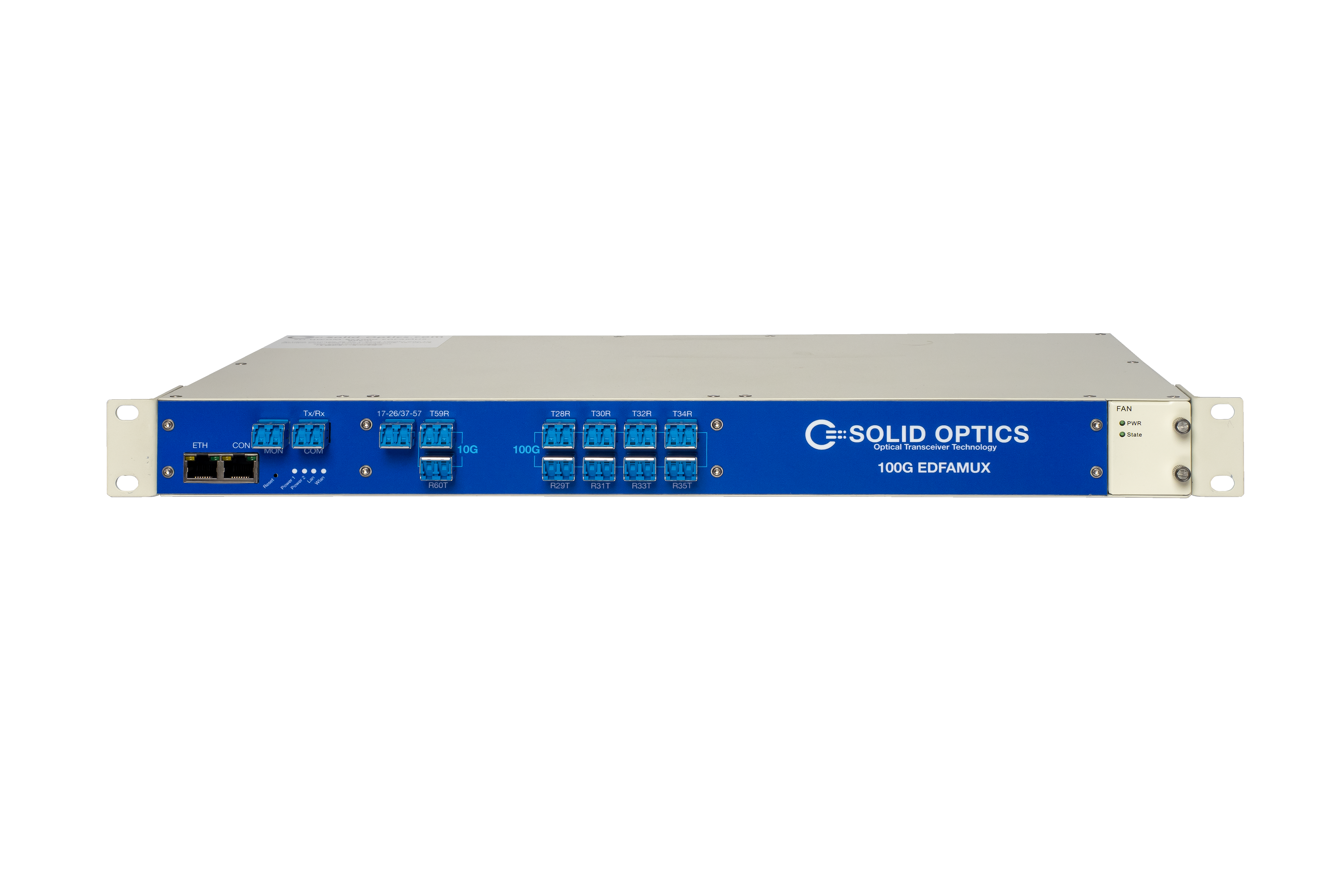

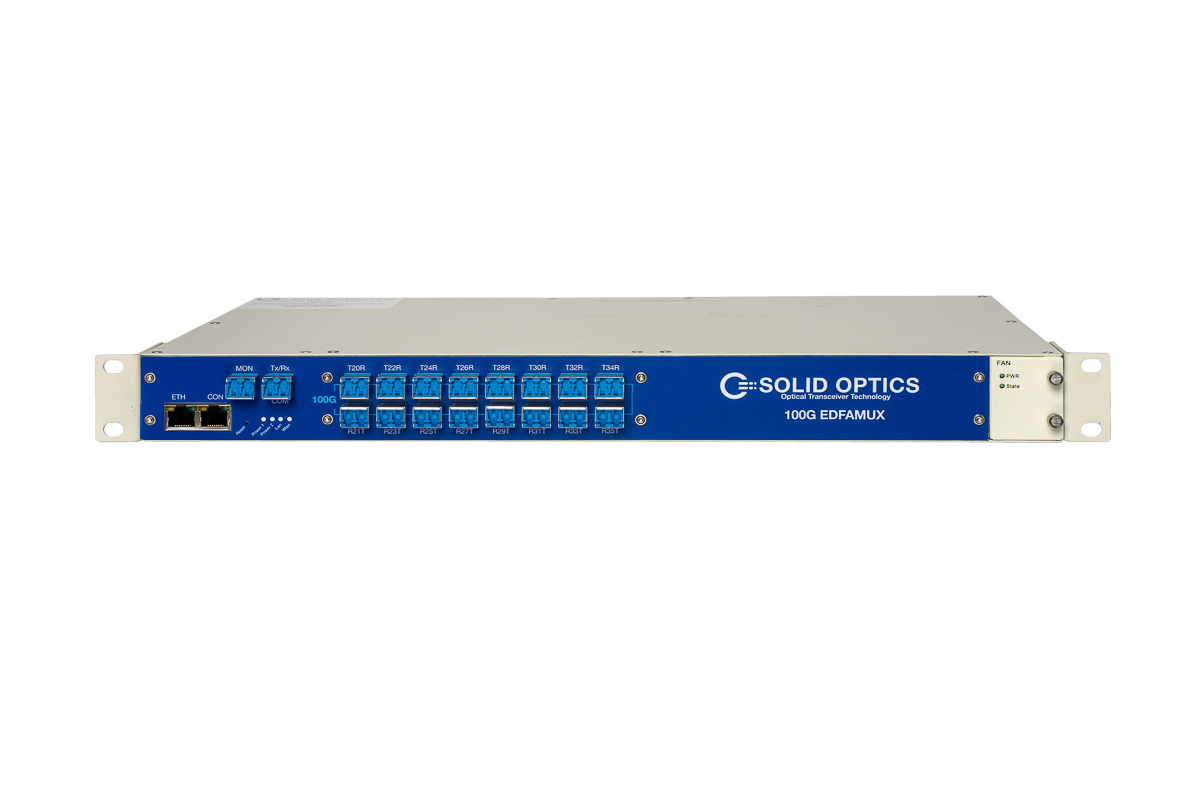

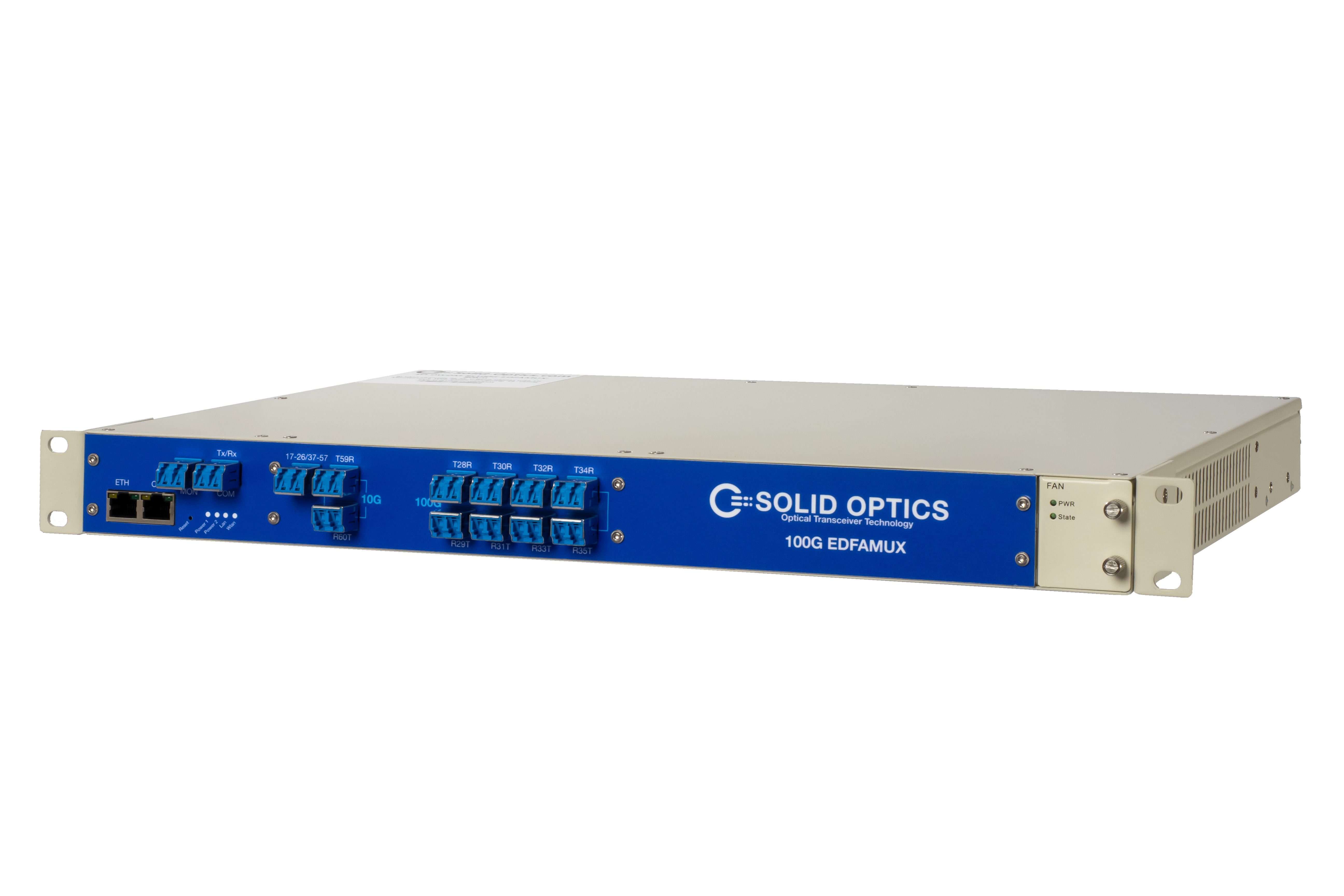

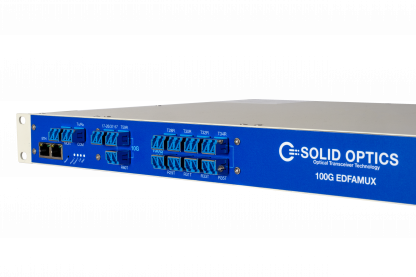

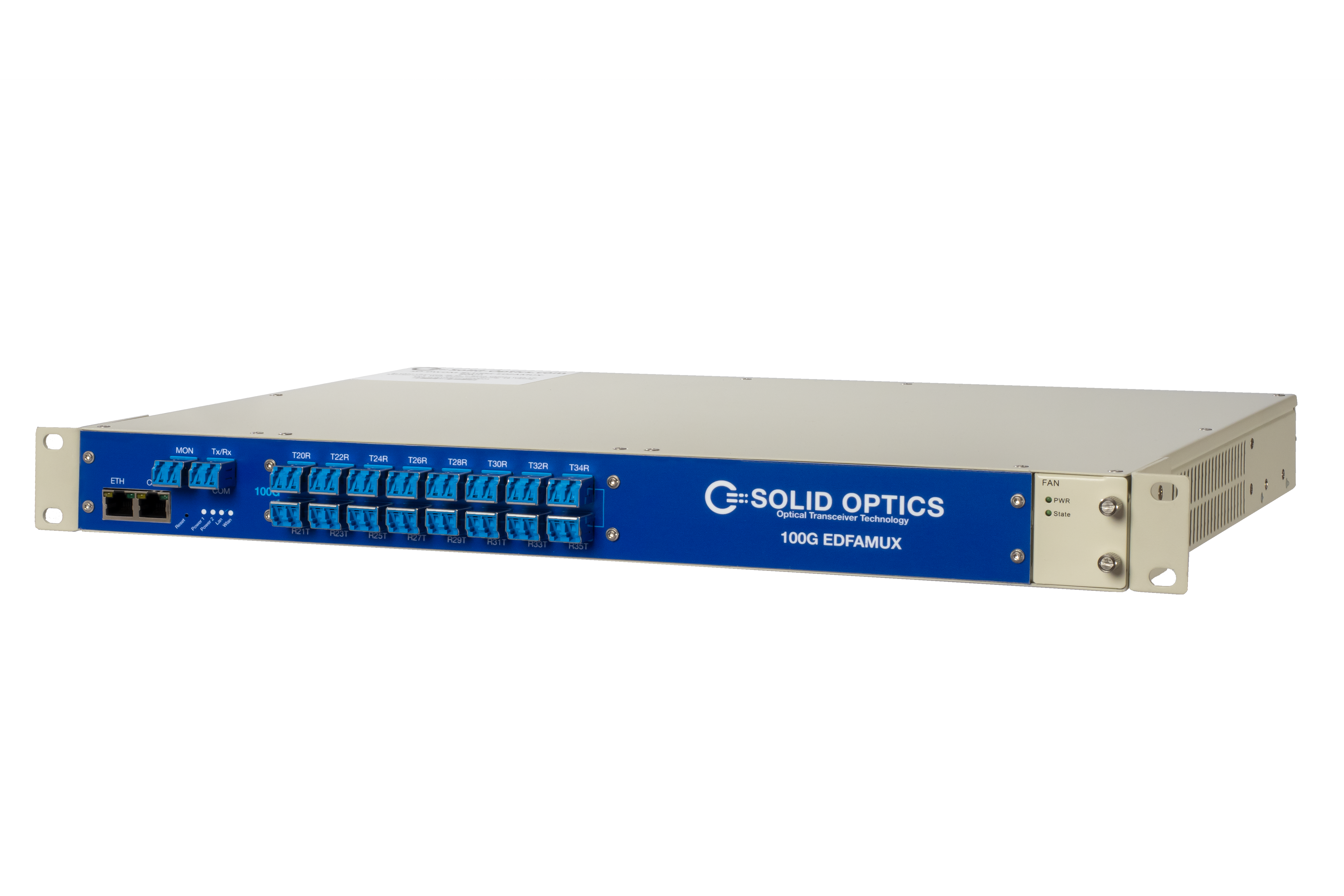

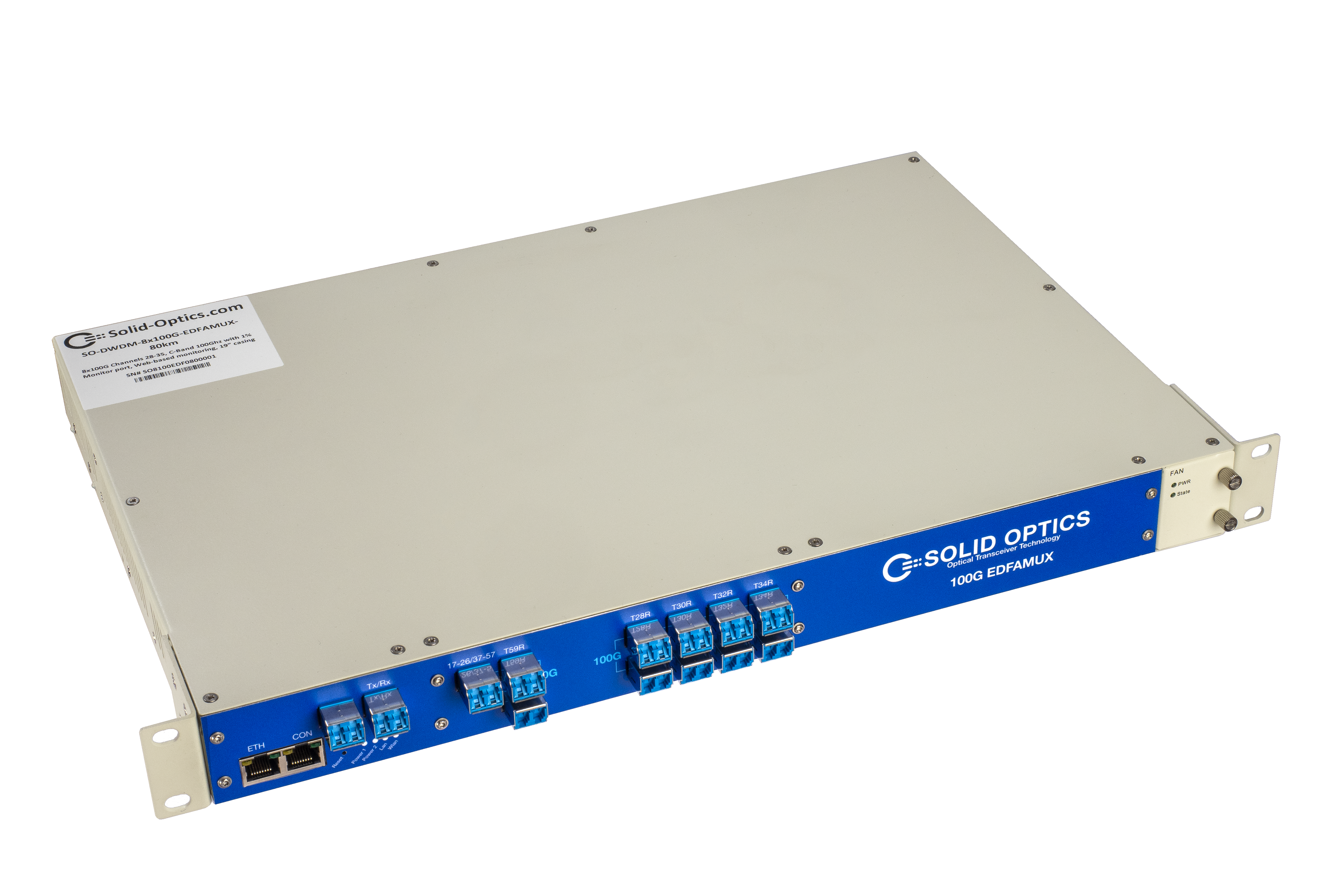

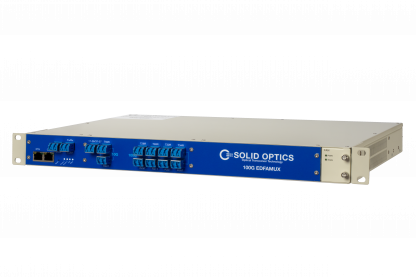

The Solid Optics DWDM EDFAMUX is an all-in-one solution incorporating a DWDM Multiplexer, an EDFA (amplifier), and a Dispersion Compensator in a 1RU 19” casing, which we pre-configure to your fiber and can be re-configured as needed.

Our EDFAMUX solutions are designed for easy deployment and are priced with budget in mind, making them an affordable option for network upgrades. These plug-and-play solutions require minimal effort on your end, allowing for a quick and hassle-free network upgrade without the need for multiple pieces of equipment or extensive configuration.

The 100G EDFAMUX models are designed to work with QSFP28 100G DWDM PAM4 optics, which require amplification to go any distance and dispersion compensation beyond 5km.  The 100G EDFAMUX models come in 40km, 80km, or 120km versions.  For multiplexing over a single fiber, please see our Simplex EDFAMUX models.

ALL-IN-ONE SOLUTION EDFAMUX for Multiple 100G Links:

  • All-In-One solution in 1RU size
  • MUX, Pre/Post EDFAs & Dispersion Compensator built-in
  • Network agnostic (operate at physical level)
  • Web and console configuration
  • Low power consumption

STANDARD FEATURES
✓ 1% Monitor port
✓ Console port
✓ Default LC/UPC with auto dust shutters
✓ Redundant AC power supplies (DC optional)
✓ Syslog Monitoring
✓ HTTP API access
✓ SNMP Monitoring

100G Models:

  • 8x100G 80km
  • 8x100G 120km

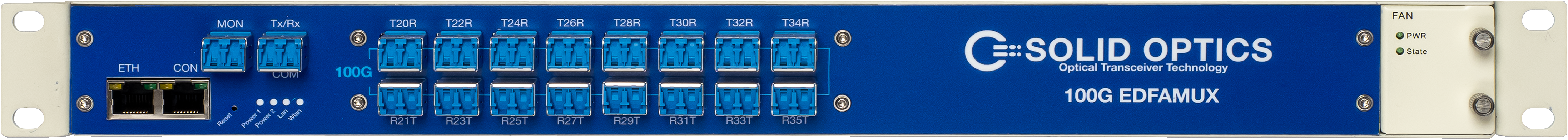

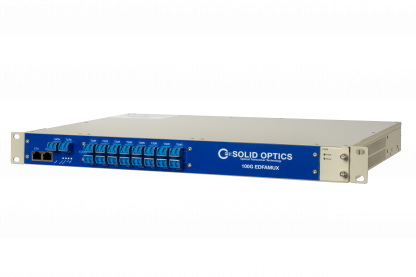

  • 16x100G 40km
  • 16x100G 80km

For fiber runs under 20km, please see our completely passive OWDM solution.

The 10G EDFAMUX models are a simple and affordable solution for long-distance applications from 80km to 200km and can be used with standard 10G 80km/ZR fixed color or tunable DWDM optics.  We now offer a Simplex version of the 10G EDFAMUX to 140km for 10G multiplexing over a single fiber.

10G Models:

  • 10x10G 140km
  • 10x10G 200km

To download the datasheet or request a quote, select the model below that best suits your application.  If you are unsure about which model might work for you, contact us for recommendations.

Visit our YouTube Channel to view a short demo of a 10G EDFAMUX or 100G EDFAMUX solution.

Get a copy of our PDF Presentation https://www.youtube.com/user/SolidOpticsTVChannelabout options above 10G:  The Present and  Future of Data Center Interconnect

Contact Us with any additional questions you may have about this solution and how it may fit in your network.



Download Manual Console

Download Manual
No Console

Download
Datasheet
Duplex

Download
Datasheet
Simplex

Product Specification

Additional information

10 Channel

CH28-37

16 Channel

CH20-35 (Upgrade port 17-18/37-60)
CH43-58 (Upgrade port 17-41)

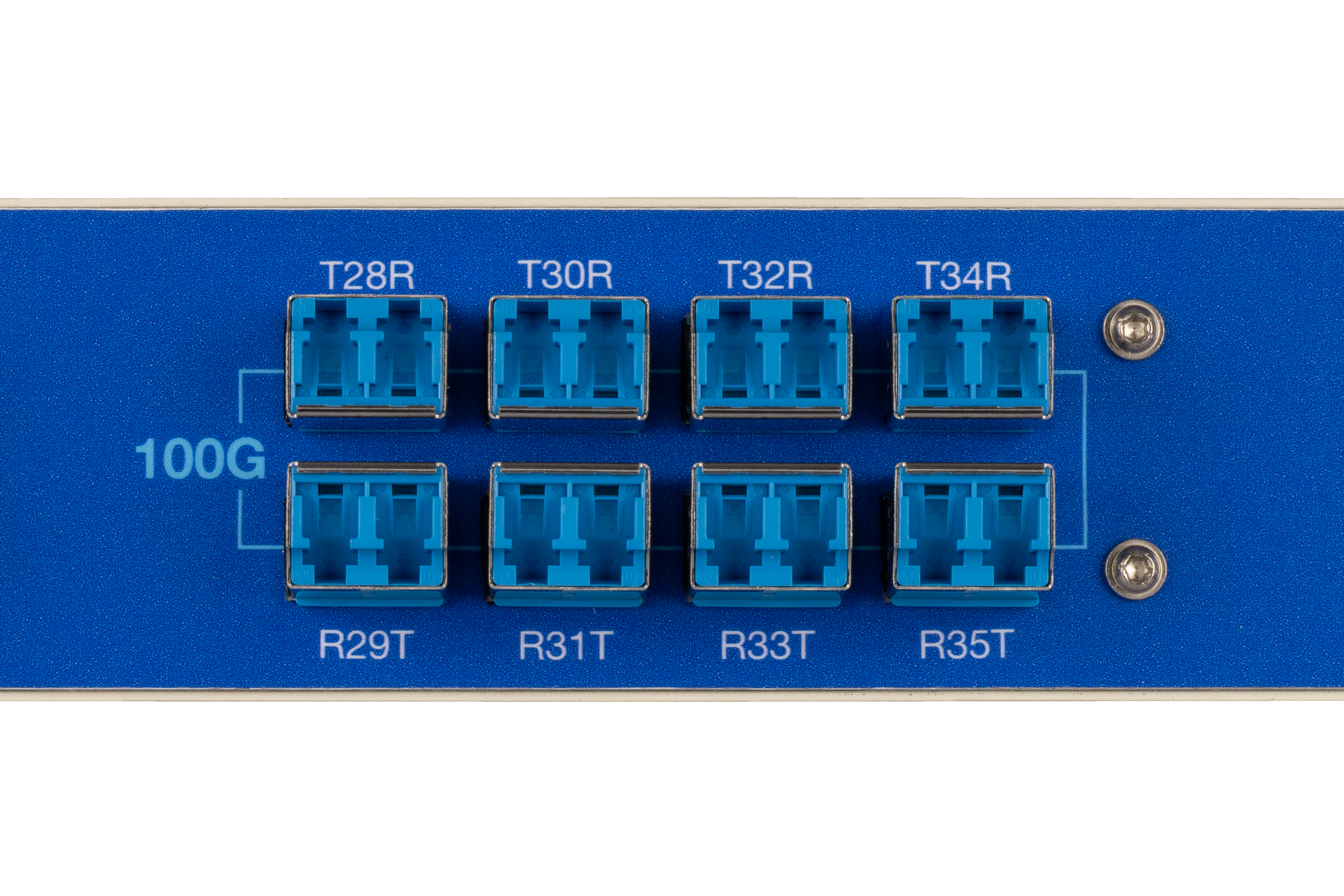

8 Channel

CH20-27 (Upgrade port 17-18/29-57)
CH28-35 (Upgrade port 17-26/37-57)
CH36-43 (Upgrade port 17-34/45-57)
CH44-51 (Upgrade port 17-42/53-57)

Monitor Port

Included 1%

Connectors

LC/UPC with dust shutters

Model

10 x 10G 140km, 10 x 10G 200km, 16 x 10G 140km, 8 x 100G 80km, 8 x 100G 120km, 16 x 100G 40km, 16 x 100G 80km, 10 x 10G 140km Simplex

Mux Technique
